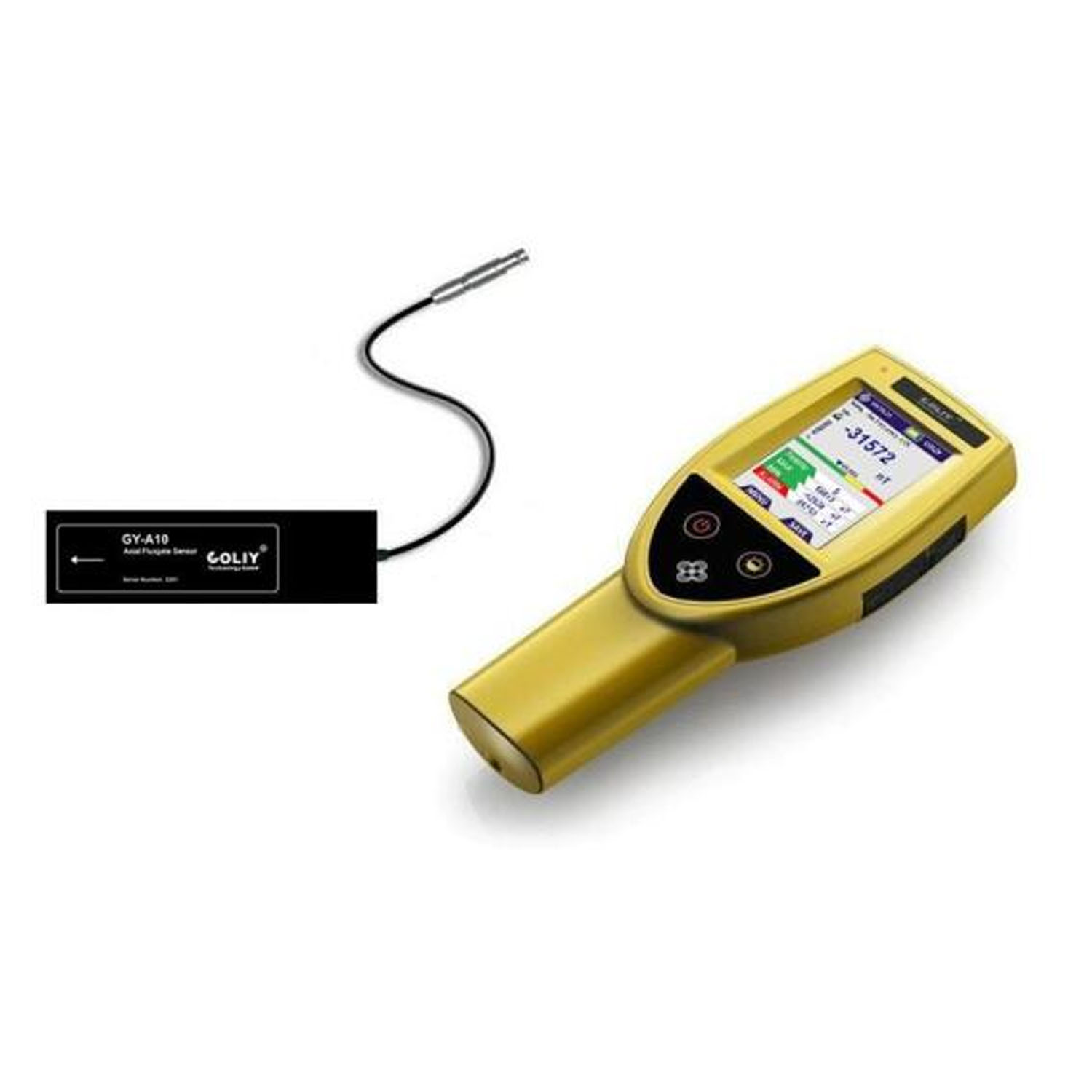

GF601 Single-Axis Fluxgate Magnetometer

Single-axis Fluxgate Magnetometer GF601, made by COLIY, has the excellent ergonomic design with the latest electronic technology, and it’s one of best choices to measure low-intensity magnetic field. This handheld fluxgate magnetometer can be used in geomagnetism detection, wrapped detection,traffic monitoring, measuring residual magnetism, low-intensity magnetic fieldmeasurement, etc.

GF601 boasts with anindustrial class 3.2 inches touch panel display that enables customers’instantaneous and simultaneous measurement results [Max/ Min/ Peak/ Hold/ Alarm/ Polarity, Magnetic Flux Density,Trend Graph, etc.].

MagnetometerGF601 can be used to detect DC magnetic field in DC measurement mode and AC magneticfield in AC measurement mode respectively: GF601 allows DC measurements with abasic accuracy of 0.5%, resolution of 0.1nT and AC measurement with a basicaccuracy of 1% and frequency response range of DC~ 1kHz. Magnetometer GF601could be equipped with Transverse Probe or Axial Probe of different range:±100μT and ±1000μT.

MagnetometerGF601 has passed the CE certification and EMC (Electromagnetic Compatibility)test.

l Finest Resolution 0.1nT

l DC/AC Measurement Mode Switch
